Audi A6 Typ 4G: On-board computer

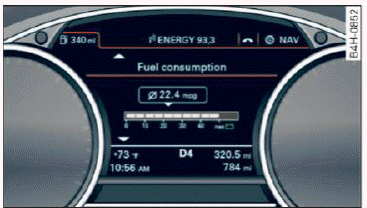

Fig. 8 Instrument cluster: fuel consumption display
You can call up the following information in the
on-board computer:
- Date
- Driving time from the short-term memory
- Average consumption from the short-term
memory
- Average speed from the short-term memory
- Distance driven from the short-term memory
- Current fuel consumption
- Short-term memory overview
- Long-term memory overview
The short-term memory collects driving information
from the time the ignition is switched on until
it is switched off. If you continue driving within
two hours after switching the ignition off, the
new values are included when calculating the current
trip information.
Unlike the short-term memory, the long-term
memory is not erased automatically. You can select
the time period for evaluating trip information
yourself.
For some vehicle functions, you can access the
driving information from the short-term memory
in the line 1 fig. 5.
Fuel consumption
The current fuel consumption can be shown using
a bar graph fig. 8. The average
consumption
stored in the short-term memory is also displayed.
If the bar is green, your vehicle is saving
fuel through one of the following functions:
- Recuperation: electrical energy can be stored in
the vehicle battery when the vehicle is coasting
or driving downhill. The bar will move toward
.
- Cylinder on demand system: the engine automatically
switches four cylinders off when lower
power output is required and other conditions
are met. This change is not noticeable to
the passengers.
Tips
The date, time of day and time and date format
can be set in the Infotainment system.
