Audi A6 Typ 4G (2011–2018) Workshop Manual / Body / Body Exterior / Rear Doors / Door Handle, Removing and Installing

Audi A6 Typ 4G: Door Handle, Removing and Installing

Housing, Removing and Installing

Removing

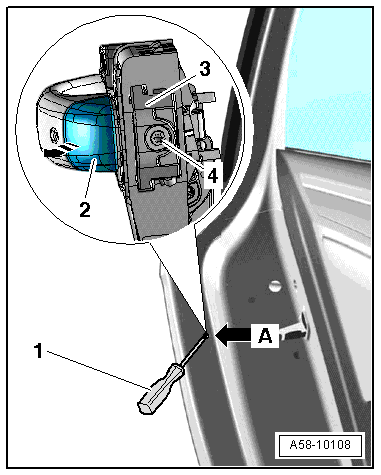

- Press the door outer seal to the side and remove the protective film over the hole -arrow A-.

- Remove the locking bolt -4- as far as the stop using a screwdriver -1-.

- Press the housing retaining bracket -3- inward.

- Remove the housing -2- from the mounting bracket -arrow B-.

Installing

Install in reverse order of removal.

A58-10108

Housing Cap, Removing and Installing

Removing

- Remove the housing. Refer to → Chapter "Housing, Removing and Installing".

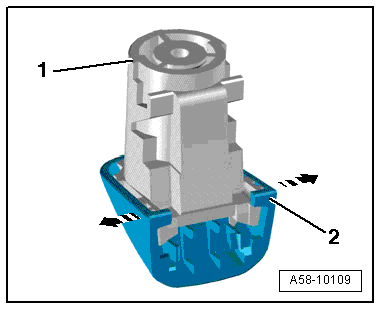

- Spread the clips -arrows- and remove the cover cap -2- from the housing -1- using an awl if necessary.

Installing

Install in reverse order of removal. Note the following:

- Press the housing cover cap on until it engages audibly.

A58-10109

Exterior Door Handle, Removing and Installing

Removing

- Remove the housing. Refer to → Chapter "Housing, Removing and Installing".

- Pull the exterior door handle -1- in the direction of the -arrow-. This disengages the handle from the operating lever in the mounting bracket.

A57-10305

- Tilt the exterior door handle -1- outward -arrow- and remove it from the mount on the mounting bracket.

- For vehicles with the "keyless access authorization system", disconnect the connector -2- from the exterior door handle.

A57-10250

Installing

Install in reverse order of removal. Note the following:

- Replace the exterior door handle washers -1- and -2- if damaged or brittle.

A57-10251

- Insert the exterior door handle -1--arrow A-. It must engage in the mount -2- on the mounting bracket -3-.

- Tilt the exterior door handle -1- in the direction of -arrow B- and slide the "coupling plate"-5- into the mounting bracket in front of the operating lever -4-.

- Press the housing retaining bracket onto the exterior door handle.

- Install the housing. Refer to → Chapter "Housing, Removing and Installing".

A57-10306

Exterior Door Handle Trim, Removing and Installing

In vehicles without "keyless entry", trim installed instead of the exterior door handle touch sensor.

Removing

- Remove the outside door handle. Refer to → Chapter "Exterior Door Handle, Removing and Installing".

- Pry the exterior door handle trim -2- out using an awl -1- at the location shown in the illustration -arrow-.

- Remove the trim from the exterior door handle -3-.

Installing

Install in reverse order of removal. Note the following:

- Slide the exterior door handle trim in until it engages audibly.

A57-10317

Door Handle Trim Molding, Removing and Installing

Removing

- Remove the outside door handle. Refer to → Chapter "Exterior Door Handle, Removing and Installing".

- Remove the bolt -5-.

- Remove the trim molding -4- from the door handle -1--arrow A-.

Installing

Install in reverse order of removal and note the following:

- Tighten the screw -5- 0.2 Nm.

  • The bolt head must not project over the contact surface for the tread.

Cap Trim Molding, Removing and Installing

Removing

- Remove the cap. Refer to → Chapter "Housing Cap, Removing and Installing".

- Remove the trim molding -3- from the cap -2--arrow B-.

Installing

Install in reverse order of removal.

Cap Trim Molding, Removing and Installing
