Audi A6 Typ 4G: Driver side cockpit fuse assignment

Fuses

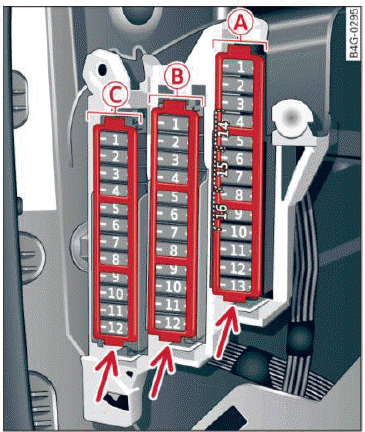

Fig. 205 Driver side cockpit: fuse panel with plastic bracket

Fuse panel (A) (black)

  1. Electromechanical power steering, trailer hitch, ionizer, switch strip, seat heating (rear), electromechanical parking brake
  2. Horn, climate control system, Gateway, automatic dimming interior rearview mirror, On-Board Unit
  1. Parking aid, headlight range adjustment
  2. Dynamic steering, Electronic Stabilization Control (ESC)
  3. Headlights
  4. Adaptive cruise control
  5. Front passenger's seat sensors, airbag
  6. Gateway
  7. Engine sound, night vision assist, garage door opener (HomeLink), parking aid
  8. Video camera image processing
  9. Headlights
  10. Steering column switch module
  11. Terminal 15 (luggage compartment)
  12. Starter

Fuse panel (B) (brown)

  1. Infotainment system
  2. Infotainment system
  3. Front passenger's seat
  1. Airbag, Electronic Stabilization Control (ESC)
  2. Anti-theft alarm system
  3. Electromechanical parking brake
  4. Interior lights
  5. Windshield video camera heating, light/ rain sensor
  6. Lumbar support (driver's seat)
  7. Driver's seat
  8. Electronic stabilization control
  9. Horn
  10. Headlights
  11. Front seat heating
  12. Dynamic steering

Fuse panel (C) (red)

  1. Clutch pedal
  2. Fuel pump
  3. Brake light sensor
  4. AdBlue (diesel engine)/engine acoustics
  5. Rear door
  6. Front door
  7. Electronic stabilization control
  8. Windshield wiper motor
  9. Headlight washer system
  10. Interior lighting, climate control system
  11. Headlights
  12. Sunroof
