Audi A6 Typ 4G: Front passenger side cockpit fuse assignment

Fuses

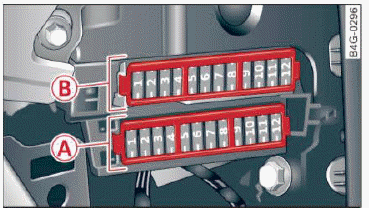

Fig. 206 Front passenger side cockpit: fuse panel with plastic bracket

Fuse panel (A) (red)

  1. Infotainment, CD changer
  2. Infotainment (display)
  3. Emergency call

Fuse panel (B) (brown)

  1. Climate control system
  2. Climate control system (blower)
  3. Diagnostic interface
  4. Electrical ignition lock
  5. Electronic steering column lock
  6. Steering column switch module
  7. Power steering column adjustment
  8. Light switch
  9. Head-up display
  10. Instrument cluster
  11. Infotainment, DVD changer
