Audi A6 Typ 4G: Overview - Backrest Cover and Cushion

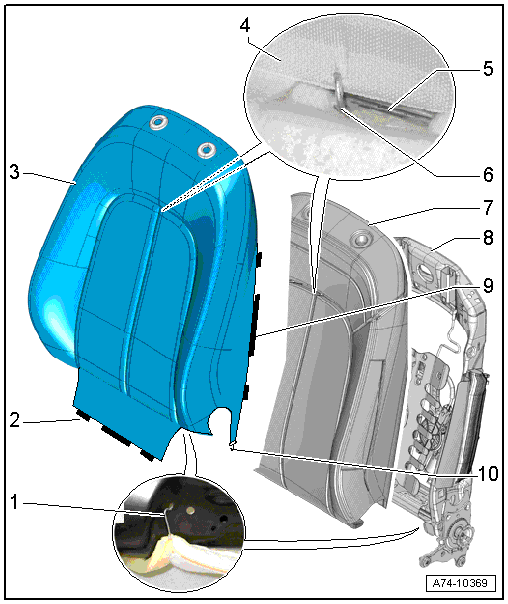

Overview - Backrest Cover and Cushion, Standard Seat/Sport Seat
1 - Contour Wire
- Pushed into the pocket of the backrest cover
- For attaching the backrest cover on the backrest frame
2 - Molding
- Sewn into backrest cover
- For attaching the backrest cover on the backrest frame
- Make sure it fits correctly inside the backrest frame
3 - Backrest Cover
- Backrest cover and cushion, removing and installing. Refer to → Chapter "Backrest Cover and Padding, Removing and Installing, Standard/Sport Seat".
- Backrest cover and cushion, separating and assembling. Refer to → Chapter "Backrest Cover and Cushion, Separating".
- Allocation. Refer to the Parts Catalog.
- Make sure there are no folds after installing
4 - Contour Wire
- Pushed into the pocket of the backrest cover
- For attachment of backrest cover to backrest cushion
5 - Wire
- Embedded in the foam of the backrest cushion
- For attachment of backrest cover to backrest cushion
6 - Cushion Clip
- For attachment of backrest cover to backrest cushion
- Replace
- Install at the same location with Upholstery Clip Pliers -VAG1634-.
7 - Backrest Cushion
- Backrest cover and cushion, removing and installing. Refer to → Chapter "Backrest Cover and Padding, Removing and Installing, Standard/Sport Seat".
- Backrest cover and cushion, separating and assembling. Refer to → Chapter "Backrest Cover and Cushion, Separating".
- Allocation. Refer to the Parts Catalog.
8 - Backrest Frame
9 - Molding
- Sewn into backrest cover
- For attaching the backrest cover on the backrest frame
- Make sure it fits correctly inside the backrest frame
10 - Tab
- With hooks
- Sewn into backrest cover
- For attaching the backrest cover on the backrest frame

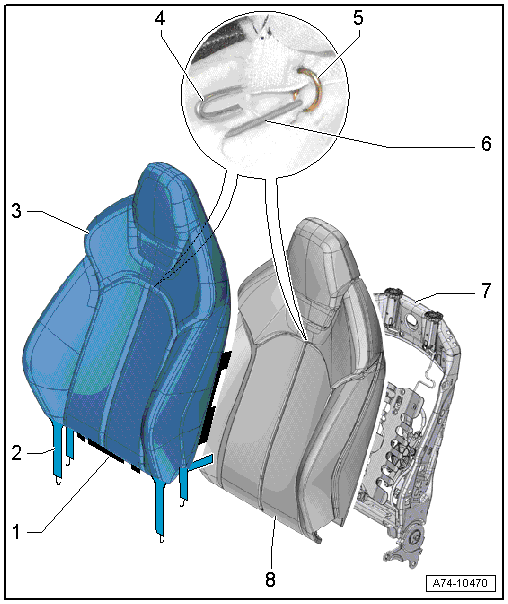

Overview - Backrest Cover and Cushion, Super Sport Seat
1 - Molding
- Sewn into backrest cover
- For attaching the backrest cover on the backrest frame
- Make sure it fits correctly inside the backrest frame
2 - Tab
- With hooks
- Sewn into backrest cover
- For attaching the backrest cover on the backrest frame
3 - Backrest Cover
- Backrest cover and cushion, removing and installing. Refer to → Chapter "Backrest Cover and Cushion, Removing and Installing, Super Sport Seat".
- Backrest cover and cushion, separating and assembling. Refer to → Chapter "Backrest Cover and Cushion, Separating".
- Allocation. Refer to the Parts Catalog.
- Make sure there are no folds after installing
4 - Contour Wire
- Pushed into the pocket of the backrest cover
- For attachment of backrest cover to backrest cushion
5 - Cushion Clip
- For attachment of backrest cover to backrest cushion
- Replace
- Install at the same location with Upholstery Clip Pliers -VAG1634-.
6 - Wire
- Embedded in the foam of the backrest cushion
- For attachment of backrest cover to backrest cushion
7 - Backrest Frame
8 - Backrest Cushion
- Backrest cover and cushion, removing and installing. Refer to → Chapter "Backrest Cover and Cushion, Removing and Installing, Super Sport Seat".
- Backrest cover and cushion, separating and assembling. Refer to → Chapter "Backrest Cover and Cushion, Separating".
- Allocation. Refer to the Parts Catalog.

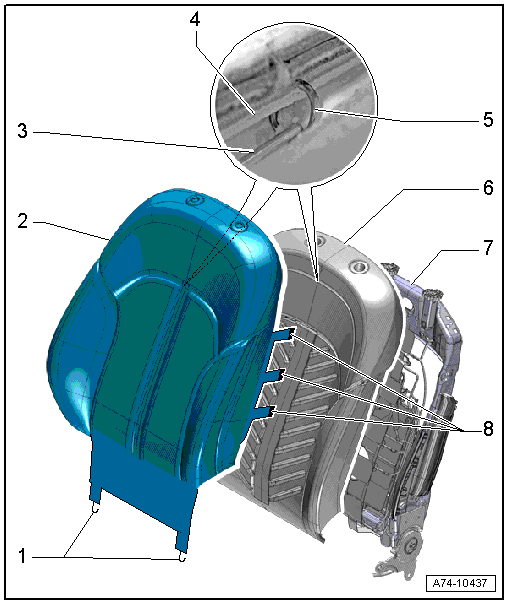

Overview - Backrest Cover and Cushion, Multi-contour Seat
1 - Tab
- With hooks
- Sewn into backrest cover
- For attaching the backrest cover on the backrest frame
2 - Backrest Cover
- Backrest cover and cushion, removing and installing. Refer to → Chapter "Backrest Cover and Cushion, Removing and Installing".
- Backrest cover and cushion, separating and assembling. Refer to → Chapter "Backrest Cover and Cushion, Separating".
- Allocation. Refer to the Parts Catalog.
- Make sure there are no folds after installing
3 - Wire
- Embedded in the foam of the backrest cushion
- For attachment of backrest cover to backrest cushion
4 - Contour Wire
- Pushed into the pocket of the backrest cover
- For attachment of backrest cover and backrest cushion
5 - Cushion Clip
- For attachment of backrest cover to backrest cushion
- Replace
- Install at the same location with Upholstery Clip Pliers -VAG1634-.
6 - Backrest Cushion
- Backrest cover and cushion, removing and installing. Refer to → Chapter "Backrest Cover and Cushion, Removing and Installing".
- Backrest cover and cushion, separating and assembling. Refer to → Chapter "Backrest Cover and Cushion, Separating".
- Allocation. Refer to the Parts Catalog.
7 - Backrest Frame
8 - Molding
- Sewn into backrest cover
- For attaching the backrest cover on the backrest frame
- Make sure it fits correctly inside the backrest frame

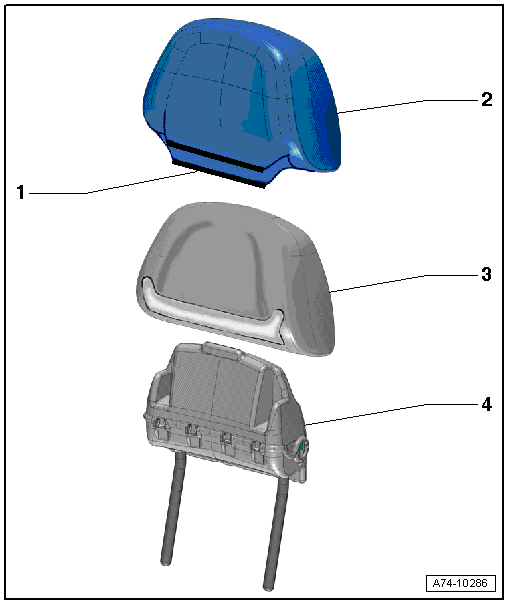

Overview - Headrest Cover and Cushion
Note
- An adjustable headrest with a leather cover is shown in the illustration.
- The height adjustable headrest with a cloth cover and the 4-position headrest cannot be disassembled.
1 - Locking Strip
- Flat strip and U-strip
2 - Cover
- Leather
- Removing and installing. Refer to → Chapter "Headrest Cover and Cushion, Removing and Installing".
Note
It is only possible to replace the cover on the height adjustable headrest with a leather cover.
3 - Cushion
- Removing and installing. Refer to → Chapter "Headrest Cover and Cushion, Removing and Installing".
4 - Headrest Support
