Audi A6 Typ 4G (2011–2018) Workshop Manual / Electrical System / Communication / Sound System / Subwoofer -R211-, Removing and Installing

Audi A6 Typ 4G: Subwoofer -R211-, Removing and Installing

Subwoofer -R211-, Removing and Installing, Standard

The Subwoofer -R211--2- is located in the center of the rear shelf.

Removing

- Turn off the ignition and all electrical consumers and remove the ignition key.

- Remove the rear shelf. Refer to → Body Interior; Rep. Gr.70; Passenger Compartment Trim; Rear Shelf, Removing and Installing.

A91-11790

- Release and disconnect the connector from the Subwoofer -R211--1-.

- Remove the bolts -arrows- from the Subwoofer -R211--1-.

- Remove the Subwoofer -R211--1- upward from the rear shelf -2-.

Installing

- Install in reverse order of removal.

A91-11766

Subwoofer -R211-, Removing and Installing, BOSE

The Subwoofer -R211--2- is located in the center of the rear shelf.

Removing

- Turn off the ignition and all electrical consumers and remove the ignition key.

- Remove the rear shelf. Refer to → Body Interior; Rep. Gr.70; Passenger Compartment Trim; Rear Shelf, Removing and Installing.

A91-11790

- Release and disconnect the connector -2- from the Subwoofer -R211--1-.

- Remove the bolts -arrows- from the Subwoofer -R211--1-.

- Remove the Subwoofer -R211--1- upward from the rear shelf -3-.

Installing

- Install in reverse order of removal.

A91-11767

Subwoofer -R211-, Removing and Installing, Bang & Olufsen, Sedan through 02/11/2013

The Subwoofer -R211--2- is located in the center of the rear shelf. The Subwoofer -R211- is attached to the rear shelf and can be removed downward from the luggage compartment.

Removing

- Turn off the ignition and all electrical consumers and remove the ignition key.

- Remove the rear shelf. Refer to → Body Interior; Rep. Gr.70; Passenger Compartment Trim; Rear Shelf, Removing and Installing.

- Open the luggage compartment.

A91-11790

- Release and disconnect the connector -2- from the Subwoofer -R211--1-.

- Remove the bolts -arrows- from the Subwoofer -R211--1- and remove the Subwoofer -R211--1- from below in the luggage compartment from the rear shelf -3-.

Installing

- Install in reverse order of removal.

A91-11768

Subwoofer -R211-, Removing and Installing, Bang & Olufsen, Sedan from 02/18/2013

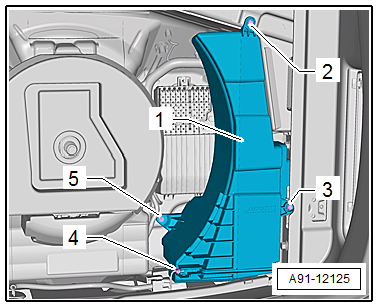

The Subwoofer -R211--2- is located in the right luggage compartment recess.

Removing

- Turn off the ignition and all electrical consumers and remove the ignition key.

- Remove the luggage compartment floor covering.

- Remove the bolts -2-, and -3- and the nut -5- from the Subwoofer -R211--1-.

- Release and disconnect the connector -4-.

- Remove the Subwoofer -R211--1- upward.

Installing

- Install in reverse order of removal.

A91-12125
