Audi A6 Typ 4G: Technical Data

Vehicle specifications

Technical Data

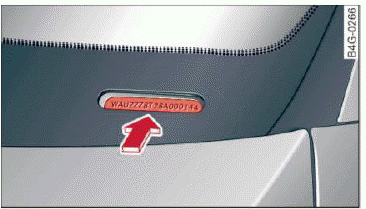

Fig. 217 Windshield (front left) : Vehicle Identification Number (VIN)

Technical Data
Fig. 218 Vehicle identification label

Vehicle Identification Number (VIN)

The VIN number is located in the following places:

  • In the Infotainment system: select: the [CAR] function button > (Car) systems control button > Serve & checks > VIN number.
  • on the vehicle identification label
  • under the windshield on the driver's side

Vehicle identification label

The vehicle identification label fig. 218 is located in the luggage compartment under the cargo floor cover.

The information of the vehicle identification label can also be found in your Warranty & Maintenance booklet.

The sticker contains the following vehicle data:

  1. Vehicle Identification Number (VIN)
  2. Vehicle type, engine output, transmission
  3. Engine and transmission codes
  4. Paint and interior codes
  5. Optional equipment numbers

Safety compliance sticker

The safety compliance sticker is your assurance that your new vehicle complies with all applicable Federal Motor Vehicle Safety Standards which were in effect at the time the vehicle was manufactured.

You can find this sticker on the door jamb on the driver's side. It shows the month and year of production and the vehicle identification number of your vehicle (perforation) as well as the Gross Vehicle Weight Rating (GVWR) and the Gross Axle Weight Rating (GAWR).

High voltage warning label

The high voltage warning label is located in the engine compartment next to the engine hood release.

The spark ignition system complies with the Canadian standard ICES-002.

Notes about technical data

The values may differ for some markets depending on equipment installed in certain markets and the measuring methods.

Please note that the specifications listed in the vehicle documentation always take precedence.

Tips

Missing technical data was not available at the time of printing.

Weights

Gross Vehicle Weight Rating

The Gross Vehicle Weight Rating (GVWR), and the Gross Axle Weight Rating (GAWR) for front and rear are listed on a sticker on the doorjamb on the driver's side.

The Gross Vehicle Weight Rating includes the weight of the basic vehicle plus full fuel tank, oil and coolant, plus maximum load, which includes passenger weight (150 lbs/68 kg per designated seating position) and luggage weight .

Gross Axle Weight Rating

The Gross Axle Weight Rating is the maximum load that can be applied at each axle of the vehicle .

Vehicle capacity weight

The vehicle capacity weight (max. load) is listed either on the driver's side B-pillar or inside the fuel filler flap.

WARNING

  • The actual Gross Axle Weight Rating at the front and rear axles should not exceed the permissible weights, and their combination must not exceed the Gross Vehicle Weight Rating.
  • Exceeding permissible weight ratings can result in vehicle damage, accidents and personal injury.

Note

  • The vehicle capacity weight figures apply when the load is distributed evenly in the vehicle (passengers and luggage). When transporting a heavy load in the luggage compartment, carry the load as near to the rear axle as possible so that the vehicle's handling is not impaired.
  • Do not exceed the maximum permissible axle loads or the maximum gross vehicle weight. Always remember that the vehicle's handling will be affected by the extra load.

    Therefore, adjust your speed accordingly.

  • Always observe local regulations.

Dimensions

Technical Data

When driving on poor roads, by curbs and on steep ramps, make sure that low-hanging components such as the spoiler and exhaust system do not come into contact with these or they could be damaged. This especially applies to vehicles that are equipped with adaptive air suspension and when the vehicle is at full load.

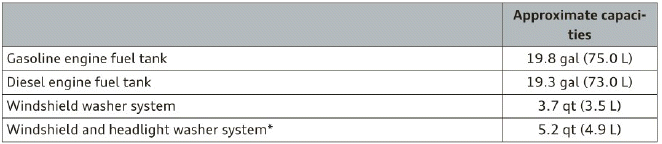

Capacities

Technical Data

Gasoline engines

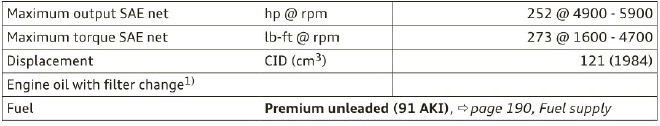

A6 2.0, 4 cylinder

Technical Data

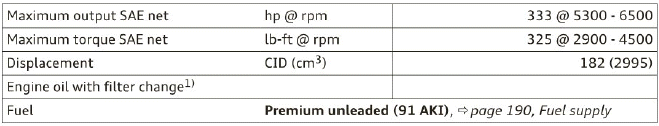

A6 3.0, 6 cylinder

Technical Data

This vehicle is available with different specifications in some markets (see car documentation).

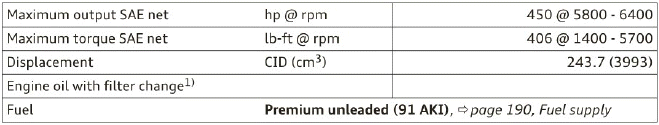

S6 4.0, 8 cylinder

Technical Data

Diesel engines

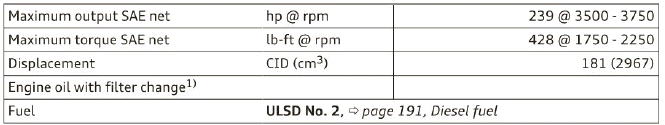

A6 3.0 TDI, 6 cylinder

Technical Data

1) For specific engine oil capacities.
