Audi A6 Typ 4G: Tie-downs
Applies to: vehicles with tie-downs
.36.png)

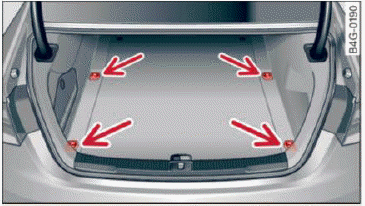

Fig. 67 Luggage compartment: location of the tie-downs
- To secure objects, for example using the luggage
compartment net, fold the tie-down retainer
upward.
Luggage compartment net
Applies to: vehicles with luggage compartment net
The cargo net prevents small objects from sliding.
.37.png)

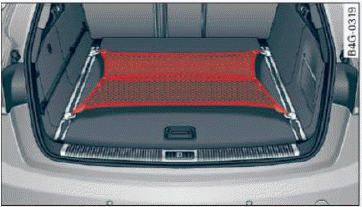

Fig. 68 Luggage compartment: cargo net stretched out
- Attach the hooks for the luggage compartment
net in the tie-downs.
WARNING
For strength reasons, only objects with a maximum
weight of 10 lb (5 kg) should be secured
in the luggage compartment net. Heavier
objects are not adequately secured. There
is risk of personal injury.
