Audi A6 Typ 4G: Treble Speaker Trim, Removing and Installing
Special tools and workshop equipment required
- Trim Removal Wedge -3409-
Removing

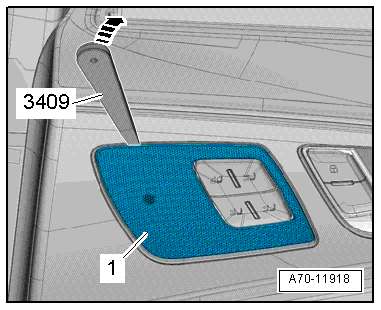

- Carefully pry the speaker trim -1- out of the door trim panel using the Trim Removal Wedge -3409--arrow- and remove it.
Market-Specific

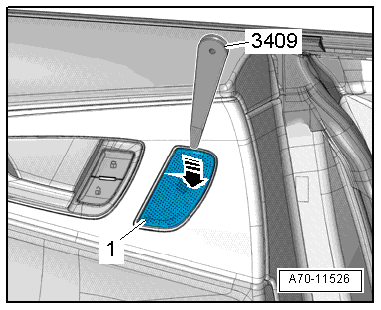

- Carefully pry the speaker trim -1- out of the door trim panel using the Trim Removal Wedge -3409- in direction of -arrow- and remove it.
Installing
Install in reverse order of removal. Note the following:
Installation notes, for example tightening specifications, replacing components. Refer to → Chapter "Overview - Rear Door Trim Panel".
Trim Molding, Removing and Installing
Special tools and workshop equipment required
- Wedge Set -T10383-
Removing

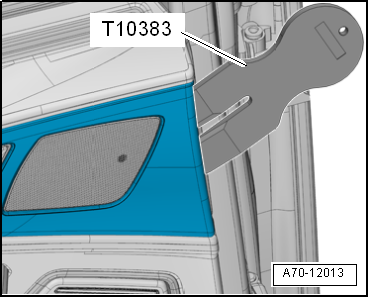

- Starting at the front, pry the trim out of the door trim panel using the Wedge Set -T10383-.

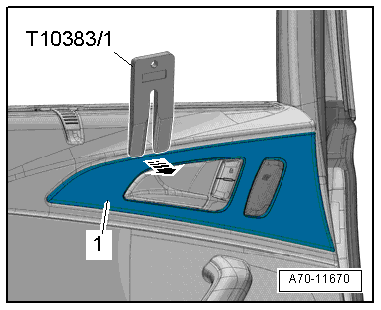

- Carefully pry the trim -1- out of the door trim panel along the seam using the Wedge Set -T10383/1- in direction of -arrow-.

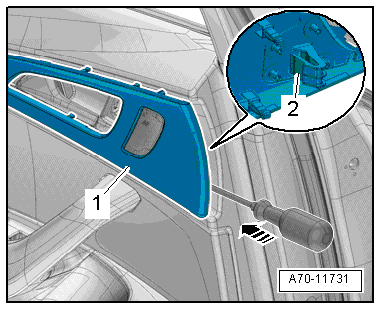

- Lift the trim -1- slightly and then unhook the front hook -2- on the door trim panel using a screwdriver in direction of -arrow-.
- Slightly raise trim panel and slide forward so that the rear trim panel hooks on the inside can be released from the cut-out of the door trim.
- Remove the trim from the door trim panel.
Installing
Install in reverse order of removal. Note the following:
Installation notes, for example tightening specifications, replacing components. Refer to → Chapter "Overview - Front Door Trim Panel".
Interior Door Mechanism, Removing and Installing
Removing
- Remove the rear door trim panel. Refer to → Chapter "Rear Door Trim Panel, Removing and Installing".
- Remove insulation mat.
- Vehicle versions with sun shade: remove the sun shade. Refer to → Chapter "Door Window Sun Shade, Removing and Installing".
- Disconnect the electrical connectors and free up the wires.

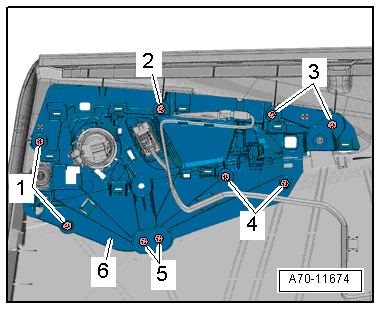

- Remove the bolts -1 through 5- on the rear of the door trim panel.
- Remove the interior door mechanism -6- from the door panel.
Installing
Install in reverse order of removal. Note the following:
Installation notes, for example tightening specifications, replacing components. Refer to → Chapter "Overview - Rear Door Trim Panel".
