Audi A6 Typ 4G: Changing the speed
Applies to: vehicles with Audi adaptive cruise control
.64.png)

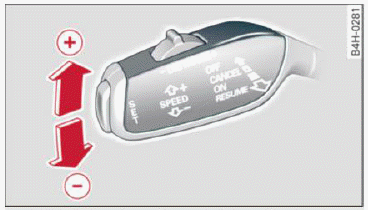

Fig. 95 Operating lever: changing the speed
- To increase or reduce the speed in increments,
tap the lever up or down.
- To increase or decrease the speed quickly, hold
the lever up or down until the red LED (A) reaches
the desired speed
fig. 94.
After each change, the new stored speed appears
briefly in the information line
fig. 94 D.
Driving in stop-and-go traffic
Applies to: vehicles with Audi adaptive cruise control
The adaptive cruise control system also assists
you in stop-and-go traffic.
Stopping automatically
If an object ahead stops, your vehicle will brake
and stay at a stop, within the limits of the system.
The Start/Stop system can be used as usual.
Driving manually
- Tap the accelerator pedal, or
- pull the lever toward you into position 2.
Tips
If an obstacle is detected when your vehicle
starts moving, the driver intervention request
appears. Your vehicle will drive
more slowly when starting. This may also
happen in some situations when there is no
apparent obstacle.
