Audi A6 Typ 4G (2011–2018) Owner's Manual / Starting and driving / Lights and Vision / Sun visors

Audi A6 Typ 4G: Sun visors

Lights and Vision

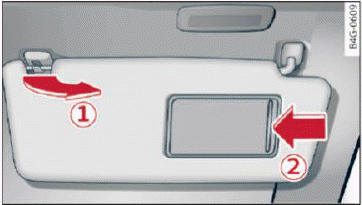

Fig. 45 Front passenger's side: sun visor

The sun visors for the driver and front passenger can be released from their mounts and turned toward the doors 1.

The mirror light switches on when the cover over the vanity mirror 2 opens.

Sunshades on the rear doors

Applies to: vehicles with sunshades on the rear doors

Lights and Vision

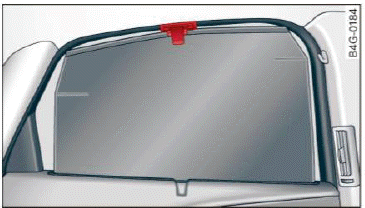

Fig. 46 Raised sunshade on a rear door

  • Pull the sunshade out and secure it in the hooks on the upper door frame fig. 46.

Sunshade on the rear window

Applies to: vehicles with a sunshade on the rear window

Lights and Vision
Applies to: sedan

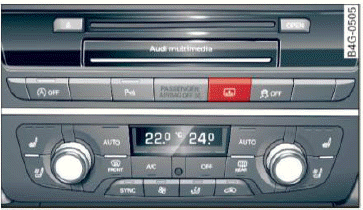

Fig. 47 Center console: button for rear window sunshade

  • To raise/lower the sunshade, press the button fig. 47 in the cockpit.

The rear window sunshade can be set so that it retracts automatically when driving in reverse. To do this, select: function button > (Car) systems control button > Vehicle settings > Automatic rear blind > On. The sunshade is extended again as soon as the vehicle is traveling forward at a speed greater than 9 mph (15 km/h) if the ignition has not been switched off in the meantime.

WARNING

Never operate the rear window sunshade without paying attention or in an uncontrolled manner. Pinching could cause serious injuries.

Tips

  • Pressing the button several times in a row can trigger the overload protection. The sunshade can only be extended/retracted again after a brief waiting period.
  • The rear window sunshade only functions when the vehicle interior is warmer than 14ºF(-10ºC).
