Audi A6 Typ 4G: Vision

Adjusting the exterior mirrors

Lights and Vision

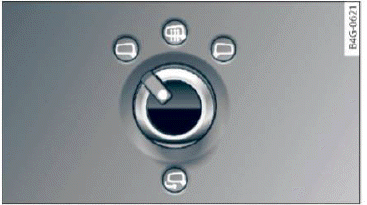

Fig. 43 Driver's door: knob for the exterior mirrors

Turn the knob to the desired position:

- adjusts the left/right exterior mirror.

Move the knob in the desired direction.

- Heat the mirror glass depending on the outside temperature.

- Folds the exterior mirrors. In the Infotainment system, you can select if the mirrors fold in automatically when you lock the vehicle.

Front passenger's exterior mirror tilt function

To help you see the curb when backing into a parking space, the surface of the mirror tilts slightly. For this to happen, the knob must be in the position for the front passenger's outside mirror.

You can adjust the tilted mirror surface by turning the knob in the desired direction. When you move out of reverse and into another gear, the new mirror position is stored and assigned to the key you are using.

The mirror goes back into its original position once you drive forward faster than 9 mph (15 km/h) or turn the ignition off.

WARNING

Curved mirror surfaces (convex or aspheric) enlarge the field of vision. However, they make objects in the mirror appear smaller and farther away. Your may estimate incorrectly when you use these mirrors to gauge your distance from the vehicles behind you when changing lanes, which increases the risk of an accident.

Note

  • If the mirror housing was moved by force (for example, by running into an object when maneuvering the vehicle), the mirror must be folded all the way in using the power folding function. The mirror housing must not be moved back into place by hand because this would impair the function of the mirror mechanism.
  • If you wash the vehicle in an automatic car wash, you must fold the exterior mirrors in to reduce the risk of damage to the mirrors.

    Never fold power folding exterior mirrors by hand. Only fold them in and out using the power controls.

Tips

  • If the power adjusting function malfunctions, the glass in both mirrors can be adjusted by pressing on the edge of it by hand.
  • The exterior mirror settings are stored with the memory function.

Dimming the mirrors

Your vehicle is equipped with a manual or automatic dimming rearview mirror.

Lights and Vision

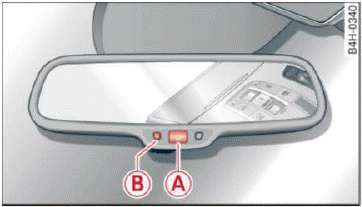

Fig. 44 Automatic dimming rearview mirror

Manual dimming rearview mirror

  • Pull the lever on the bottom of the mirror back.

Automatic dimming rearview mirror

  • Press the button A fig. 44. The indicator light B turns on. Interior and exterior mirrors will dim when there is incoming light (such as headlights from the rear).

WARNING

If the glass on an automatic dimming mirror breaks, electrolyte can leak out. This liquid can irritate the skin, eyes and respiratory system.

If there is contact with the fluid, flush immediately with plenty of water. Consult a physician if necessary.

  • Repeated or long-term exposure to electrolyte fluid can lead to irritation of the airways, especially in people with asthma or other respiratory conditions. Take deep breaths immediately after leaving the vehicle or, if this is not possible, open all of the doors and windows as wide as possible.
  • If electrolyte fluid enters the eyes, flush them thoroughly with a large amount of clean water for at least 15 minutes and then seek medical attention.
  • If electrolyte fluid comes into contact with the skin, flush the affected area with clean water for at least 15 minutes and then clean with soap and water and seek medical attention.

    Clean affected clothing and shoes thoroughly before wearing again.

  • If the fluid was swallowed and the person is conscious, flush the mouth with water for at least 15 minutes. Do not induce vomiting unless this is recommended by medical professionals.

    Seek medical attention immediately.

Note

If the glass on an automatic dimming mirror breaks, electrolyte can leak out. This liquid damages plastic surfaces and paint. Clean this liquid as quickly as possible, for example with a wet sponge.

Tips

  • If the light reaching the rearview mirror is obstructed, the automatic dimming mirror will not function correctly,
  • The automatic dimming mirrors do not dim when the interior lighting is turned on or the reverse gear is selected.
