Audi A6 Typ 4G: Component Location Overview - Electric and Electronic Components
Component Locations Overview - Electric and Electronic Components, Standard Seat/Sport Seat/Super Sport Seat

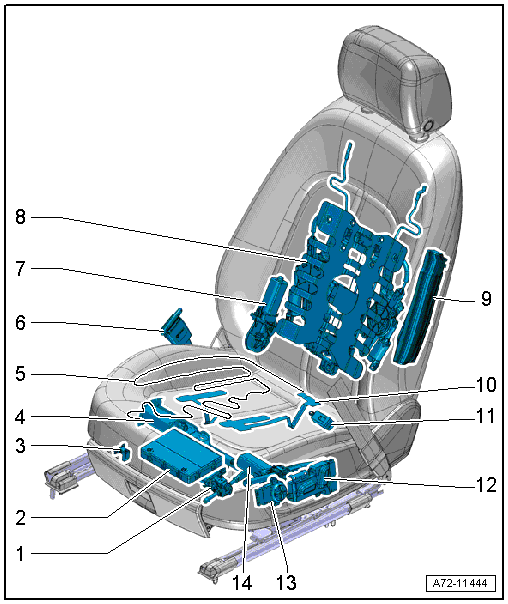

1 - Driver Seat Angle Adjustment Motor -V243-
- Front passenger side: Front Passenger Seat Angle Adjustment Motor -V224-
- Equipment levels
- Overview
2 - Memory Seat/Steering Column Adjustment Control Module -J136-
- Front passenger side: Front Passenger Memory Seat Control Module -J521-
- Overview
Left Front Seat Ventilation Control Module -J800-
- Front passenger side: Right Front Seat Ventilation Control Module -J799-
- Overview
Passenger Occupant Detection System Control Module -J706- - market-specific
- Overview. Refer to → Chapter "Component Location Overview - Passenger Occupant Detection System".
3 - Driver Seat Position Sensor -G553-
- Front passenger side: Front Passenger Seat Position Sensor -G554-
- Overview. Refer to → Chapter "Overview - Seat Position Sensor".
4 - Driver Seat Forward/Back Adjustment Motor -V28-
- Front passenger side: Front Passenger Seat Forward/Back Adjustment Motor -V31-
- Equipment levels
- Integrated in the lower seat frame; replace if the lower seat frame is faulty. Refer to → Chapter "Lower Seat Frame/Forward/Back Adjustment Motor, Removing and Installing"
5 - Driver Seat Heating Element -Z6-/Driver Backrest Heating Element -Z7-
- Passenger side: Front Passenger Seat Heating Element -Z8-/Front Passenger Backrest Heating Element -Z9-
- Equipment levels
- Heating element, removing and installing. Refer to → Chapter "Driver Seat Heating Element -Z6-/Front Passenger Seat Heating Element -Z8-, Removing and Installing".
6 - Driver Seat Belt Switch -E24-
- Passenger side: Front Passenger Seat Belt Switch -E25-
- Removing and installing. Refer to → Chapter "Front Seat Belt Latch, Removing and Installing, Standard Seat/Sport Seat/Super Sport Seat".
7 - Driver Backrest Adjustment Motor -V45-
- Front passenger side Front Passenger Backrest Adjustment Motor -V46-
- Equipment levels
- Overview. Refer to → Chapter "Overview - Front Backrest, Backrest Adjustment Motor".
8 - Lumbar Support
- Driver side with Driver Seat Lumbar Support Curvature Adjustment Motor -V125-/Driver Seat Lumbar Support Height Adjustment Motor -V129-
- Front passenger side with Front Passenger Seat Lumbar Support Curvature Adjustment Motor -V126-/Front Passenger Seat Lumbar Support Height Adjustment Motor -V130-
- Overview. Refer to → Chapter "Overview - Front Backrest, Lumbar Support".
9 - Front Side Airbag
- Driver side: with the Driver Thorax Airbag Igniter -N199-
- Front passenger side: with Front Passenger Thorax Airbag Igniter -N200-
WARNING
Follow all Safety Precautions when working with pyrotechnic components. Refer to → Chapter "Pyrotechnic Components Safety Precautions".
- Overview. Refer to → Chapter "Overview - Front Side Airbag, Standard Seat/Sport Seat/Super Sport Seat".
10 - Front Passenger Occupant Detection Sensor -G128-
- Market-specific: Passenger Occupant Detection System Pressure Sensor -G452-
- Vehicles version front passenger side only
- Removing and installing. Refer to → Chapter "Front Passenger Occupant Detection Sensor -G128-, Removing and Installing".
- Versions with Passenger Occupant Detection System Sensor for Front Passenger Airbag Deactivation, Removing and installing. Refer to → Chapter "Passenger Occupant Detection System, Removing and Installing".
11 - Left Rear Footwell Lamp -W45-
- Right: Right Rear Footwell Lamp -W46-
- Removing and installing. Refer to → Electrical Equipment; Rep. Gr.96; Lamps; Left/Right Rear Footwell Lamp W45/W46, Removing and Installing.
12 - Driver Seat Adjustment Control Head -E470-
- Front passenger side: Front Passenger Seat Adjustment Control Head -E471-
- Equipment levels
- Overview. Refer to → Chapter "Overview - Seat Pan, Seat Adjustment Actuator/Switch".
13 - Driver Seat Lumbar Support Adjustment Switch -E176-
- Front passenger side Front Passenger Seat Lumbar Support Adjustment Switch -E177-
- Overview
14 - Driver Seat Height Adjustment Motor -V245-
- Front passenger side: Front Passenger Seat Height Adjustment Motor -V246-
- Equipment levels
- Overview
Component Location Overview - Electric and Electronic Components, Multi-contour Seat
Multi-contour Seat through 08/2012

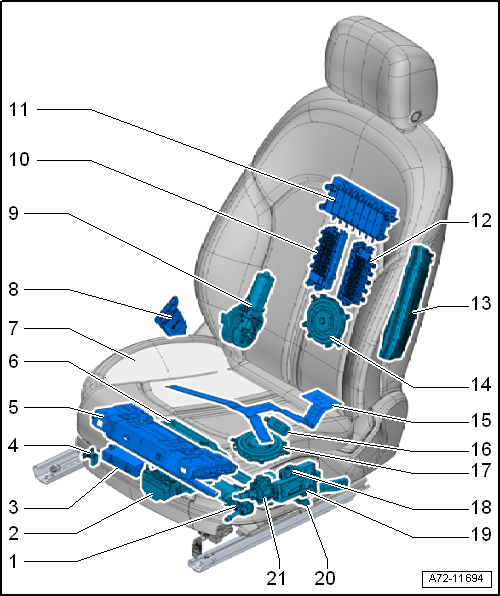

1 - Driver Seat Angle Adjustment Motor -V243-
- Front passenger side: Front Passenger Seat Angle Adjustment Motor -V224-
- Overview
2 - Driver Multi-contour Seat Compressor -V439-
- Front passenger side: Front Passenger Multi-contour Seat Compressor -V440-
- Overview. Refer to → Chapter "Overview - Compressor, Multi-contour Seat through 08/2012".
3 - Memory Seat/Steering Column Adjustment Control Module -J136-
- Vehicles with seat ventilation: seat ventilation and left front seat heating integrated
- Front passenger side: Front Passenger Memory Seat Control Module -J521-
- Vehicles with seat ventilation: seat ventilation and right front seat heating integrated
- Overview
4 - Driver Seat Position Sensor -G553-
- Front passenger side: Front Passenger Seat Position Sensor -G554-
- Overview. Refer to → Chapter "Overview - Seat Position Sensor".
5 - Driver Seat Depth Adjustment Motor -V256-
- Front passenger side: Front Passenger Seat Depth Adjustment Motor -V257-
- Overview
6 - Driver Seat Forward/Back Adjustment Motor -V28-
- Front passenger side: Front Passenger Seat Forward/Back Adjustment Motor -V31-
- Integrated in the lower seat frame; replace if the lower seat frame is faulty. Refer to → Chapter "Lower Seat Frame/Forward/Back Adjustment Motor, Removing and Installing"
7 - Driver Seat Heating Element -Z6-/Driver Backrest Heating Element -Z7-/Driver Seat Bolster Heater -Z31-
- Front passenger side: Front Passenger Seat Heating Element -Z8-/Front Passenger Backrest Heating Element -Z9-/Front Passenger Seat Bolster Heater -Z33-
- Equipment levels
- Heating element, removing and installing. Refer to → Chapter "Seat Pan Cover and Cushion, Separating, Multi-contour Seat".
8 - Driver Seat Belt Switch -E24-
- Passenger side: Front Passenger Seat Belt Switch -E25-
- Removing and installing. Refer to → Chapter "Front Seat Belt Latch, Removing and Installing, Multi-contour Seat".
9 - Driver Backrest Adjustment Motor -V45-
- Front passenger side Front Passenger Backrest Adjustment Motor -V46-
- Overview. Refer to → Chapter "Overview - Front Backrest, Backrest Adjustment Motor".
10 - Valve Block 1 in Driver Seat -N475-
- for massage mat
- Front passenger side: Valve Block 1 in Front Passenger Seat -N477-
- Overview. Refer to → Chapter "Overview - Backrest Cushion Massage Mat, Multi-contour Seat through 08/2012".
11 - Driver Multi-contour Seat Control Module -J873-
- Front passenger side: Front Passenger Multi-contour Seat Control Module -J872-
- The connection for the restrictor is deleted on the Original Replacement Part with an integrated check valve and the separate check value must be removed. Refer to the Parts Catalog.
- Removing and installing. Refer to → Chapter "Multi-contour Seat Control Module, Removing and Installing, through 08/2012".
12 - Front Side Airbag
- Driver side: with the Driver Thorax Airbag Igniter -N199-
- Front passenger side: with Front Passenger Thorax Airbag Igniter -N200-
WARNING
Follow all Safety Precautions when working with pyrotechnic components. Refer to → Chapter "Pyrotechnic Components Safety Precautions".
- Overview. Refer to → Chapter "Overview - Front Side Airbag, Multi-contour Seat".
13 - Valve Block 2 in Driver Seat -N476-
- For massage mat
- Front passenger side: Valve Block 2 in Front Passenger Seat -N478-
- Overview. Refer to → Chapter "Overview - Backrest Cushion Massage Mat, Multi-contour Seat through 08/2012".
14 - Driver Seat Backrest Blower Fan -V388-
- Front passenger side: Front Passenger Seat Backrest Blower Fan -V389-
- Removing and installing. Refer to → Chapter "Front Backrest Fan, Removing and Installing".
15 - Front Passenger Occupant Detection Sensor -G128-
- Market-specific: Passenger Occupant Detection System Pressure Sensor -G452-
- Vehicles with front passenger seat only
- Removing and installing. Refer to → Chapter "Front Passenger Occupant Detection Sensor -G128-, Removing and Installing".
- Market-specific - passenger occupant detection system with seat heating element are sewn in the seat cover
- Versions with Passenger Occupant Detection System Sensor for Front Passenger Airbag Deactivation, Removing and installing. Refer to → Chapter "Passenger Occupant Detection System, Removing and Installing".
16 - Left Rear Footwell Lamp -W45-
- Right: Right Rear Footwell Lamp -W46-
- Equipment levels
- Removing and installing. Refer to → Electrical Equipment; Rep. Gr.96; Lamps; Left/Right Rear Footwell Lamp W45/W46, Removing and Installing.
17 - Driver Seat Cushion Blower Fan -V390-
- Front passenger side: Front Passenger Seat Cushion Blower Fan -V391-
- Overview
18 - Driver Side Massage Function Button -E670-
- Front passenger side: Front Passenger Massage Function Button -E671-
- Removing and installing. Refer to → Chapter "Driver Side Massage Function Button -E670-/Front Passenger Massage Function Button -E671-, Removing and Installing".
19 - Driver Seat Switch Module -E663-
- Front passenger side: Front Passenger Seat Switch Module -E664-
- Overview
20 - Driver Seat Height Adjustment Motor -V245-
- Front passenger side: Front Passenger Seat Height Adjustment Motor -V246-
- Overview
21 - Driver Seat Switch Module 2 -E667-
- Front passenger side: Front Passenger Seat Switch Module 2 -E668-
- Overview
Multi-contour Seat from 09/2012

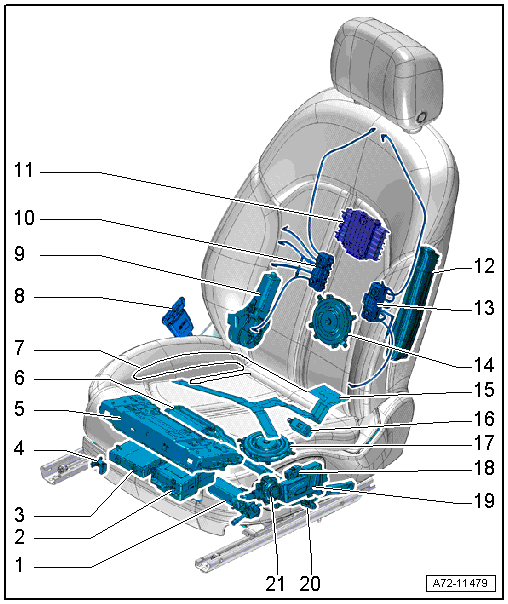

1 - Driver Seat Angle Adjustment Motor -V243-
- Front passenger side: Front Passenger Seat Angle Adjustment Motor -V224-
- Overview
2 - Driver Multi-contour Seat Compressor -V439- with Integrated Driver Multi-contour Seat Control Module -J873-
- Front passenger side: Front Passenger Multi-contour Seat Compressor -V440- with integrated Front Passenger Multi-contour Seat Control Module -J872-
- Overview. Refer to → Chapter "Overview - Compressor, Multi-contour Seat from 09/2012".
3 - Memory Seat/Steering Column Adjustment Control Module -J136-
- Vehicles with seat ventilation: seat ventilation and left front seat heating integrated
- Front passenger side: Front Passenger Memory Seat Control Module -J521-
- Vehicles with seat ventilation: seat ventilation and right front seat heating integrated
- Overview
4 - Driver Seat Position Sensor -G553-
- Front passenger side: Front Passenger Seat Position Sensor -G554-
- Overview. Refer to → Chapter "Overview - Seat Position Sensor".
5 - Driver Seat Depth Adjustment Motor -V256-
- Front passenger side: Front Passenger Seat Depth Adjustment Motor -V257-
- Overview
6 - Driver Seat Forward/Back Adjustment Motor -V28-
- Front passenger side: Front Passenger Seat Forward/Back Adjustment Motor -V31-
- Integrated in the lower seat frame; replace if the lower seat frame is faulty. Refer to → Chapter "Lower Seat Frame/Forward/Back Adjustment Motor, Removing and Installing"
7 - Driver Seat Heating Element -Z6-/Driver Backrest Heating Element -Z7-/Driver Seat Bolster Heater -Z31-
- Front passenger side: Front Passenger Seat Heating Element -Z8-/Front Passenger Backrest Heating Element -Z9-/Front Passenger Seat Bolster Heater -Z33-
- Equipment levels
- Heating element, removing and installing. Refer to → Chapter "Seat Pan Cover and Cushion, Separating, Multi-contour Seat".
8 - Driver Seat Belt Switch -E24-
- Passenger side: Front Passenger Seat Belt Switch -E25-
- Removing and installing. Refer to → Chapter "Front Seat Belt Latch, Removing and Installing, Multi-contour Seat".
9 - Driver Backrest Adjustment Motor -V45-
- Front passenger side Front Passenger Backrest Adjustment Motor -V46-
- Overview. Refer to → Chapter "Overview - Front Backrest, Backrest Adjustment Motor".
10 - Valve Block 3 in Driver Seat -N523-
- Front passenger side: Valve Block 3 in Front Passenger Seat -N524-
- for massage mat
- Overview. Refer to → Chapter "Overview - Backrest Cushion Massage Mat, Multi-contour Seat from 09/2012".
11 - Valve Block 1 in Driver Seat -N475-
- Front passenger side: Valve Block 1 in Front Passenger Seat -N477-
- For lumbar support and side wall adjuster
- Overview. Refer to → Chapter "Overview - Valve Block/Module Carrier/Lumbar Support/Fan, Multi-contour Seat from 09/2012".
12 - Valve Block 2 in Driver Seat -N476-
- Front passenger side: Valve Block 2 in Front Passenger Seat -N478-
- For massage mat
- Overview. Refer to → Chapter "Overview - Backrest Cushion Massage Mat, Multi-contour Seat from 09/2012".
13 - Front Side Airbag
- Driver side: with the Driver Thorax Airbag Igniter -N199-
- Front passenger side: with Front Passenger Thorax Airbag Igniter -N200-
WARNING
Follow all Safety Precautions when working with pyrotechnic components. Refer to → Chapter "Pyrotechnic Components Safety Precautions".
- Overview. Refer to → Chapter "Overview - Front Side Airbag, Multi-contour Seat".
14 - Driver Seat Backrest Blower Fan -V388-
- Front passenger side: Front Passenger Seat Backrest Blower Fan -V389-
- Removing and installing. Refer to → Chapter "Front Backrest Fan, Removing and Installing".
15 - Front Passenger Occupant Detection Sensor -G128-
- Market-specific: Passenger Occupant Detection System Pressure Sensor -G452-
- Vehicles with front passenger seat only
- Removing and installing. Refer to → Chapter "Front Passenger Occupant Detection Sensor -G128-, Removing and Installing".
- Market-specific - passenger occupant detection system with seat heating element are sewn in the seat cover
- Versions with Passenger Occupant Detection System Sensor for Front Passenger Airbag Deactivation, Removing and installing. Refer to → Chapter "Passenger Occupant Detection System, Removing and Installing".
16 - Left Rear Footwell Lamp -W45-
- Right: Right Rear Footwell Lamp -W46-
- Equipment levels
- Removing and installing. Refer to → Electrical Equipment; Rep. Gr.96; Lamps; Left/Right Rear Footwell Lamp W45/W46, Removing and Installing.
17 - Driver Seat Cushion Blower Fan -V390-
- Front passenger side: Front Passenger Seat Cushion Blower Fan -V391-
- Overview
18 - Driver Side Massage Function Button -E670-
- Front passenger side: Front Passenger Massage Function Button -E671-
- Removing and installing. Refer to → Chapter "Driver Side Massage Function Button -E670-/Front Passenger Massage Function Button -E671-, Removing and Installing".
19 - Driver Seat Switch Module -E663-
- Front passenger side: Front Passenger Seat Switch Module -E664-
- Overview
20 - Driver Seat Height Adjustment Motor -V245-
- Front passenger side: Front Passenger Seat Height Adjustment Motor -V246-
- Overview
21 - Driver Seat Switch Module 2 -E667-
- Front passenger side: Front Passenger Seat Switch Module 2 -E668-
- Overview

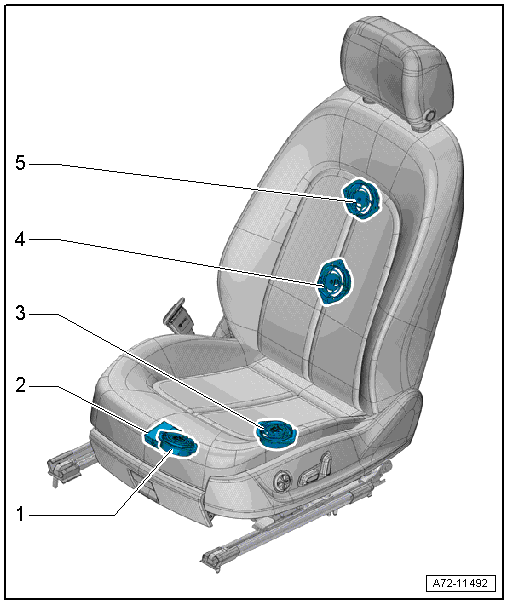

Component Location Overview - Electric and Electronic Components, Seat Ventilation Fan
1 - Driver Seat Cushion Blower Fan -V390-
- Front passenger side: Front Passenger Seat Cushion Blower Fan -V391-
- Removing and installing. Refer to → Chapter "Seat Cushion Blower Fan, Removing and Installing, Standard Seat/Sport Seat/Super Sport Seat".
2 - Left Front Seat Ventilation Control Module -J800- (integrated in the seat heating)
- Front passenger side: Left Front Seat Ventilation Control Module -J799- (integrated in the seat heating function)
- Removing and installing. Refer to → Chapter "Seat Ventilation Control Module (Integrated in Seat Heating), Removing and Installing".
3 - Driver Seat Cushion Blower Fan 2 -V419-
- Front passenger side: Front Passenger Seat Cushion Blower Fan 2 -V420-
- Removing and installing. Refer to → Chapter "Seat Cushion Blower Fan, Removing and Installing, Standard Seat/Sport Seat/Super Sport Seat".
4 - Driver Seat Backrest Blower Fan 2 -V417-
- Front passenger side: Front Passenger Seat Backrest Blower Fan 2 -V418-
- Glued to the backrest cushion
- Removing and installing. Refer to → Chapter "Front Backrest Fan, Removing and Installing".
5 - Driver Seat Backrest Blower Fan -V388-
- Front passenger side: Front Passenger Seat Backrest Blower Fan -V389-
- Glued to the backrest cushion
- Removing and installing. Refer to → Chapter "Front Backrest Fan, Removing and Installing".
