Audi A6 Typ 4G: Power windows
Controls
The driver can control oil power windows.
.3.png)
Fig. 31 Section of driver's door: child safety lock buttons
All power window switches are equipped with a
two-stage function:
Opening and closing the windows
- To open or close the window completely, press
the switch down or pull the switch up briefly to
the second level. The operation will stop if the
switch is pressed/pulled again.
- To select a position in between opened and
closed, press/pull the switch to the first level
until the desired window position is reached.

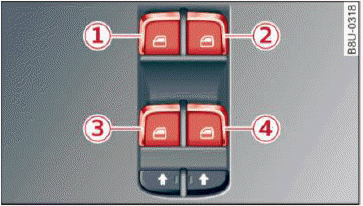

Power window switches
- Left front door
- Right front door
- Left rear door
- Right rear door
WARNING
Tips
You can still open and close the windows for
approximately 10 minutes after turning the
ignition off. The power windows do not switch
off until the driver's door or front passenger's
door has been opened.
Convenience opening
All of the windows and the sunroof can be
opened at once.
The settings in the Infotainment system specify
which windows will open.
Convenience opening feature
- Press and hold the
button
on the remote
control key until all of the windows reach the
desired position and the sunroof is tilted open.
Setting convenience opening in the
Infotainment system
- Select: the
function
button > (Car) Systems
control button > Vehicle settings > Central
locking > Long-press to open windows.
To enable convenience opening of the windows
and the roof, the Front windows, Rear windows
and Roof functions must be switched On.
WARNING
For security reasons, the windows and the
sunroof can only be opened with the remote
control key at a maximum distance of approximately
6 feet (2 m) from the vehicle.
Correcting power window malfunctions
You con reactivate the one-touch up/down function
if it malfunctions.
- Pull the power window switch up until the window
is completely raised.
- Release the switch and pull it up again for at
least one second.
