Audi A6 Typ 4G: Sunroof
Description
Applies to: vehicles with sliding/tilting sunroof
.4.png)

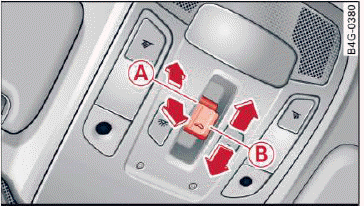

Fig. 33 Section of head liner: sunroof button
A - Tilting/sliding
- To tilt the sunroof completely, press the switch briefly to the second level.
- To open the sunroof completely, pull the switch briefly to the second level.
- To select an intermediate position, press/pull the switch to the first level until the desired position is reached.
B - Opening/sliding (version 1)
- To move the roof into the reduced wind noise position, press the button back briefly to the second level. The roof will open all the way if you press the button back to the second level again.
- To close the sunroof completely, press the switch forward briefly to the second level.
- To select an intermediate position, press/pull the switch forward/back to the first level until the desired position is reached.
B - Opening/sliding (version 2)
- To open the sunroof completely, press the switch back to just before the second level.
- To close the sunroof completely, press the switch forward briefly to the second level.
- To select an intermediate position, press/pull the switch forward/back to the first level until the desired position is reached.
The sunshade can be opened and closed by hand when the roof is closed. The sunshade opens automatically when the roof is opened.
You can still operate the sliding/tilting sunroof for about 10 minutes after the ignition is switched off. The switch is deactivated once the driver's or front passenger's door is opened.
WARNING
Pay careful attention when closing the sliding/ tilting sunroof - otherwise serious injury could result! Always take the ignition key with you when leaving the vehicle.
Note
Always close your sliding/tilting sunroof when leaving your vehicle. Sudden rain can cause damage to the interior equipment of your vehicle, particularly the electronic equipment.
Tips
- For information on convenience opening.
- The sunroof will only open down to -20 ºC (-4 ºF).
Sunroof power emergency closing
Applies to: vehicles with sliding/tilting sunroof
If the sunroof detects an object in its path when it is closing, it will open again automatically. In this case, you can close the roof with the power emergency closing function.
- Within five seconds after the sunroof opens automatically, pull the switch until the roof closes.
If you let go of the switch early, the sunroof will open again.
