Audi A6 Typ 4G: Starting the engine when there is a
malfunction
It may not be possible to start the engine under
certain circumstances, for example if the battery
in the vehicle key is drained, if interference is affected
the key or if there is a system malfunction.
.48.png)

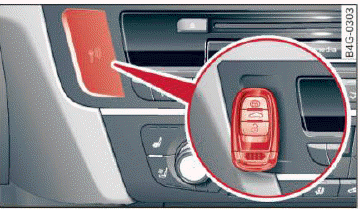

Fig. 79 Center console/remote control key: starting the
engine if there is a malfunction
Requirement: the message Key is not recognized.
Hold back of key against marked area.
See owner's manual must appear and the
.30.png)
indicator
light must turn on.
- Hold the remote control key in the location indicated
as shown in the illustration
.31.png)
fig. 79.
- Press the brake pedal.
- Press the [START ENGINE STOP] button. The engine will start.
- Drive to an authorized Audi dealer or authorized
Audi Service Facility immediately to have
the malfunction corrected.
Tips
You can view the message again by pressing
the [START ENGINE STOP] button.
