Audi A6 Typ 4G: Window Guide, Removing and Installing

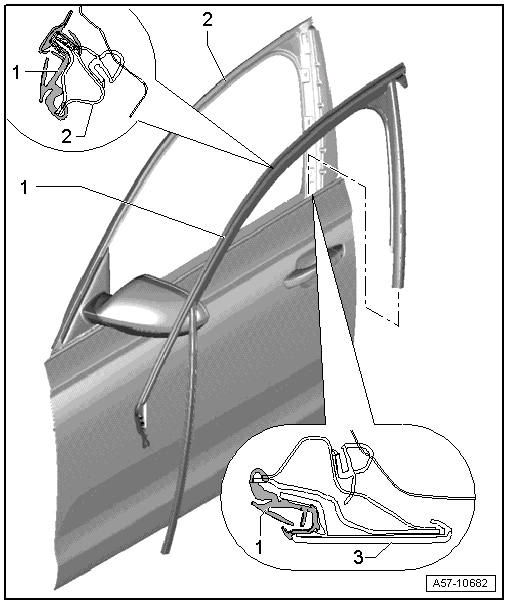

1 - Window Guide
- Removing
- The exterior mirror is moved. Refer to → Chapter "Overview - Exterior Rearview Mirror".
- Remove the door trim panel and window frame trim panel. Refer to → Body Interior; Rep. Gr.70; Front Door Trim Panels; Window Frame Trim, Removing and Installing.
- The B-pillar trim is removed. Refer to → Chapter "Overview - Front Door Window Shaft Strip and B-Pillar Trim".
- The door window is removed. Refer to → Chapter "Front Door Window, Removing and Installing".
- Unhook the window guide on the bottom of the window frame from the flange.
- Remove the seal profile for the window guide on the B-pillar (self-adhesive).
- Remove the window guide from the B-pillar trim and unclip it (4x) on the C-pillar.
- Remove the inner window shaft strip from the door flange.
- Remove the window guide on the B-pillar and on the C-pillar from the door.
- Remove the window guide from the door.
- Installing
- For easier installation, coat window guide with a soap solution.
- Position the window guide at the top of the B-pillar and then push it into the guide with the clip.
- When doing this, the molded piece must contact the door.
- Press the window guide on the window frame and clip it to the C-pillar.
- Install the trim on the B-pillar and on the C-pillar and push it into the window guide.
- Press the window shaft strip back on.
Caution
The adhesive surface must be free of dust and grease.
- Clean the adhesive surface on the door with Cleaning Solution -D 009 401 04-.
- Tape the sealing profile for the window guide to the B-pillar with two-sided adhesive tape.
2 - B-Pillar Trim
Install the Guide

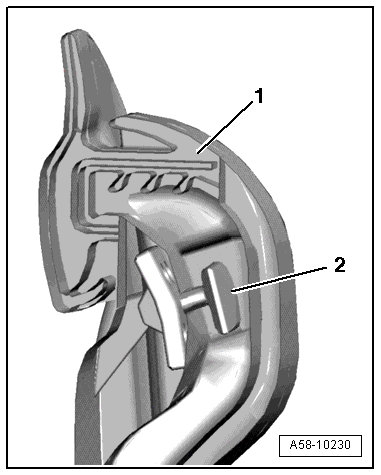

- Push the guide -1- and the clip -2- onto the top of the B-pillar -arrow- as illustrated.
Outer Window Shaft Strip, Removing and Installing
Special tools and workshop equipment required
- Window Slot Seal Tool -T40219-

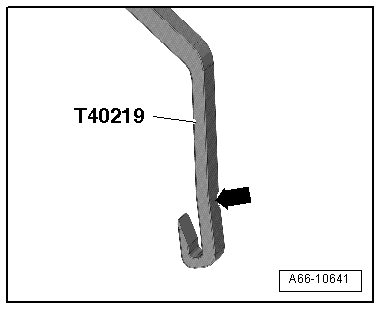

Window Slot Seal Tool -T40219- preparing:
- To remove the window shaft strip, pull the Window Slot Seal Tool -T40219- carefully at the marked location -arrow- so that it can be inserted behind the strip.
Removing
- Lower the door window.
- Remove the window frame trim panel. Refer to → Body Interior; Rep. Gr.70; Front Door Trim Panels; Window Frame Trim, Removing and Installing.
- Remove the mirror adjustment unit bracket. Refer to → Chapter "Exterior Rearview Mirror, Removing and Installing".
- Remove the window guide from the guide near the B-pillar.

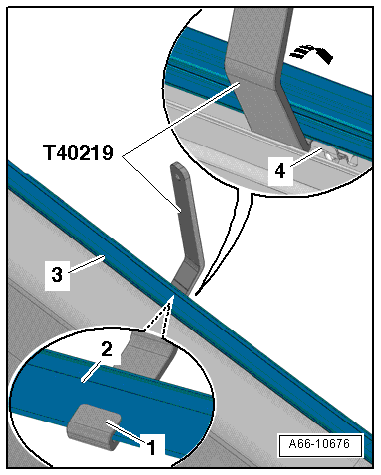

- Insert the Window Slot Seal Tool -T40219- next to the guide-4- for the window shaft strip -3- and hold it on the strip -2-.
- The front section -1- of the Window Slot Seal Tool -T40219- must be installed as illustrated.
- Push the Window Slot Seal Tool -T40219- gently in direction of -arrow- to release it.
- The retaining strip must audibly unlock.
- Remove the window shaft strip upward from the door flange using the Window Slot Seal Tool -T40219-.
- Remove the molded piece -3- from the door shell.

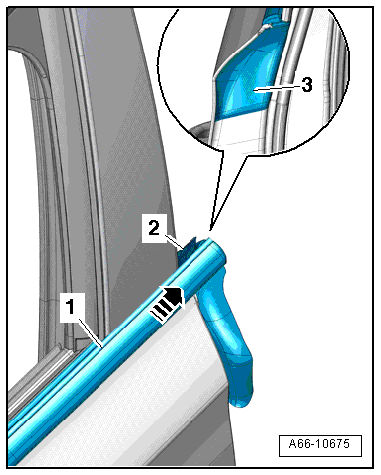

- Push the window shaft strip -1- toward the rear -arrow- until the guide -2- for the molded part disengages from the trim on the B-pillar.
- Remove the window shaft strip.
Installing
Install in reverse order of removal. Note the following:
Note
When installing, the lower edge of the window shaft strip can be coated with tire mounting paste.

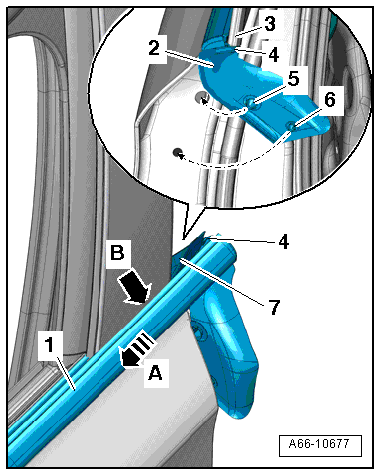

- Position the window shaft strip -1- on the door fold as illustrated.
- Push the window shaft strip forward -arrow A-. While doing this, the guide -7- for the molded part -2- must be pushed into the mount on the B-pillar -arrow B-.
- Insert the "rubber nose"-4- into the guide in the B-pillar trim -3- and press the retainers -5- and -6- onto the door shell.

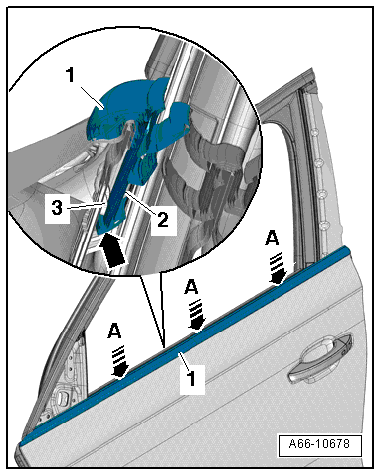

- Press the window shaft strip -1- evenly -arrows A- so that the strip -2- audibly engages.
- The retaining strip must fit -arrow- under the retaining plate -3-.
- Install the window guide. Refer to → Chapter "Window Guide, Removing and Installing".
