Audi A6 Typ 4G: Bulb Holder, Removing and Installing
Bulb Socket, Removing and Installing, Tail Lamp, Sedan
Removing
- Remove the outer tail lamp. Refer to → Chapter "Tail Lamp, Removing and Installing, Sedan".

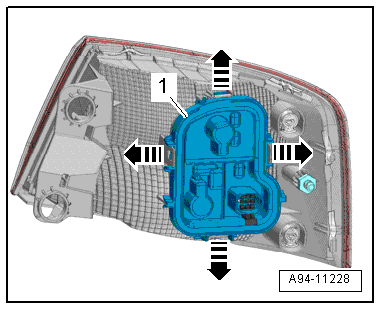

- Push the locking bracket in direction of -arrow- and remove the bulb socket -1- from the housing.
- Remove the bulb from the bulb socket.
Installing
Install in reverse order of removal. Note the following:
- Insert the new bulb in the socket. Do not touch the glass bulbs with bare hands.
Bulb Socket, Removing and Installing, LED Tail Lamp, Sedan
Removing
- Remove the outer tail lamp. Refer to → Chapter "Tail Lamp, Removing and Installing, Sedan".

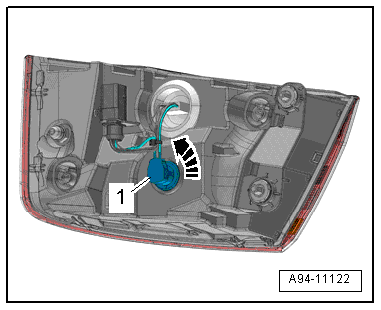

- Turn the socket -1- counterclockwise -arrow- and remove it from the housing.
- Remove the bulb from the bulb socket.
Installing
Install in reverse order of removal. Note the following:
- Insert new bulbs in the bulb socket. Do not touch the glass bulbs with bare hands.
Bulb Socket, Removing and Installing, Avant
Removing
- Remove the outer tail lamp. Refer to → Chapter "Tail Lamp, Removing and Installing, Avant".
- Remove the bolts -arrows-.
- Remove the bulb socket -1- from the housing.
- Remove the bulb from the bulb socket.
Installing
Install in reverse order of removal. Note the following:
- Insert the new bulb in the socket. Do not touch the glass bulbs with bare hands.
Bulb Socket, Removing and Installing, Rear Lid Tail Lamp, Sedan
Removing
- Remove the inner tail lamp. Refer to → Chapter "Rear Lid Tail Lamp, Removing and Installing, Sedan".
- Push the locking bracket -1 and 3- in direction of -arrow- and remove the bulb socket -2- from the housing.
- Remove the tail lamp bulb/fog lamp from the bulb socket.
- Remove the back-up lamp bulb from the bulb socket.
Installing
Install in reverse order of removal. Note the following:
- Insert new bulbs in the bulb socket. Do not touch the glass bulbs with bare hands.
Inner Bulb Socket, Removing and Installing, Rear Lid Tail Lamp, Avant
Removing
- Remove the inner tail lamp. Refer to → Chapter "Rear Lid Tail Lamps, Removing and Installing, Avant".

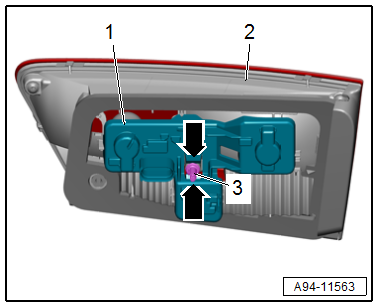

- Remove the bulb socket -1- from the housing -2- by pulling the clip -arrows- over the threaded pin -3-.
- Remove the tail lamp bulb/fog lamp from the bulb socket.
- Remove the back-up lamp bulb from the bulb socket.
Installing
Install in reverse order of removal. Note the following:
- Insert new bulbs in the bulb socket. Do not touch the glass bulbs with bare hands.
