Audi A6 Typ 4G: Child safety lock
The child safety lock prevents the rear doors
from being opened from the inside and the rear
power windows from be operated.
.2.png)

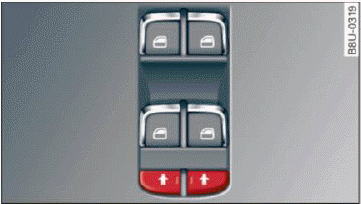

Fig. 31 Section of driver's door: child safety lock buttons
- To activate/deactivate the inner door handle
and the power window switch for the respective
rear door, press the left/right
.46.png)
button in the
driver's door
fig. 31. The indicator light in the
button turns on/blinks.
- To activate/deactivate the child safety lock on
both sides, you must press the
.47.png)
buttons one
after the other.
WARNING
Always take the vehicle key with you when
leaving the vehicle, even for a short period of time. This applies particularly
when children
remain in the vehicle. Otherwise children
could start the engine or operate electrical
equipment (such as power windows), which
increases the risk of an accident.
