Audi A6 Typ 4G: Specifications
Fastener Tightening Specifications
.png)
1 Replace
2 For bolt tightening
clarification, refer to
→ Chapter "Overview - ATF Circuit" and see items
-15 and 17-
Drive Axle Heat Shield - Tightening Specification
- Tighten the heat shield bolts -arrows-
to 23 Nm.

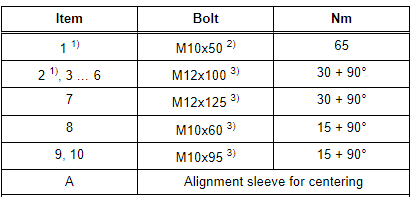

S tronic Transmission on the 6-Cylinder or 8-Cylinder
Gasoline Engine
.png)
1) Mount the auxiliary adapter
2) Bolt strength rating 10.9.
There is no limit to the number of times steel bolts may be
used.
3) The bolts may be used two times.
