Audi A6 Typ 4G: Technical Data
Suspension

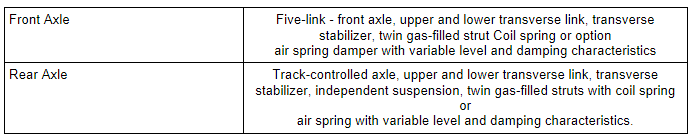

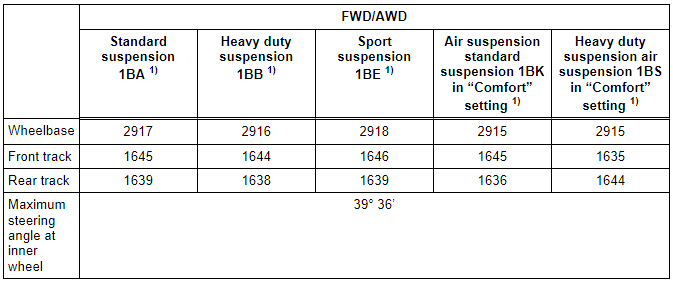

Suspension, All Vehicles

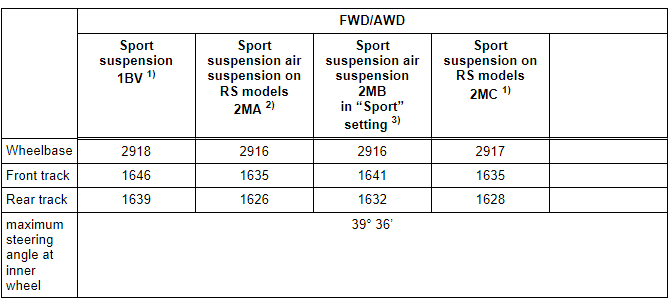

Sportback Suspension
Note
- The specified values apply to all engine versions.
- Tracks change with use of rims with different offset.
1) Front/rear track width, applies only to 235/55
R 17 (ET30).
1) Front/rear track width, applies only
to 235/55 R 17 (ET30).
2) Front/rear track width, applies only
to 275/35 R 20 (ET35).
3) Front/rear track width, applies only
to 255/40 R 19 (ET32).
Steering
