Audi A6 Typ 4G: Overview - Front Seat Pneumatic System
Overview - Pneumatic System, Multi-contour Seat through 08/2012
Note
For repair instructions and test methods for pneumatic components. Refer to → Chapter "Pneumatic Lines, Servicing".

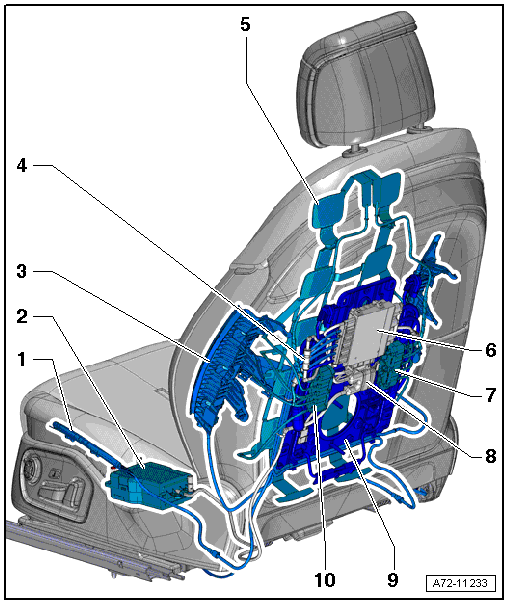

1 - Seat Bolster Inflation Adjustment
- Overview. Refer to → Chapter "Overview - Pneumatic System, Seat-/Backrest Bolster Adjuster".
2 - Driver Multi-contour Seat Compressor -V439-
- Front passenger side: Front Passenger Multi-contour Seat Compressor -V440-
- Overview. Refer to → Chapter "Overview - Compressor, Multi-contour Seat through 08/2012".
3 - Backrest Bolster Inflation Adjuster
- Overview. Refer to → Chapter "Overview - Pneumatic System, Seat-/Backrest Bolster Adjuster".
4 - Check Valve
- Depending on the version, separate component or integrated in the multi-contour seat control module
- Remove the external check valve if installing a Multi-contour seat control module that contains a check valve. Refer to the Parts Catalog.
5 - Massage Mat
- Integrated in the backrest cushion; if defective replace backrest cushion. Refer to → Chapter "Backrest Cover and Cushion, Separating".
- Overview. Refer to → Chapter "Overview - Backrest Cushion Massage Mat, Multi-contour Seat through 08/2012".
6 - Driver Multi-contour Seat Control Module -J873-
- Front passenger side: Front Passenger Multi-contour Seat Control Module -J872-
- The connection for the restrictor is deleted on the Original Replacement Part with an integrated check valve and the separate check value must be removed. Refer to the Parts Catalog.
- Overview. Refer to → Chapter "Overview - Valve Block/Module Carrier/Lumbar Support/Fan, Multi-contour Seat through 08/2012".
7 - Valve Block 1 in Driver Seat -N475-
- For massage mat
- Front passenger side: Valve Block 1 in Front Passenger Seat -N477-
- Overview. Refer to → Chapter "Overview - Backrest Cushion Massage Mat, Multi-contour Seat through 08/2012".
8 - Pulsation Damper
9 - Module Carrier with Air Cushions for Lumbar Support
- Cannot be disassembled
- Overview. Refer to → Chapter "Overview - Valve Block/Module Carrier/Lumbar Support/Fan, Multi-contour Seat through 08/2012".
10 - Valve Block 2 in Driver Seat -N476-
- For massage mat
- Front passenger side: Valve Block 2 in Front Passenger Seat -N478-
- Overview. Refer to → Chapter "Overview - Backrest Cushion Massage Mat, Multi-contour Seat through 08/2012".
Overview - Pneumatic System, Multi-contour Seat from 09/2012
Note
For repair instructions and test methods for pneumatic components. Refer to → Chapter "Pneumatic System, Checking".

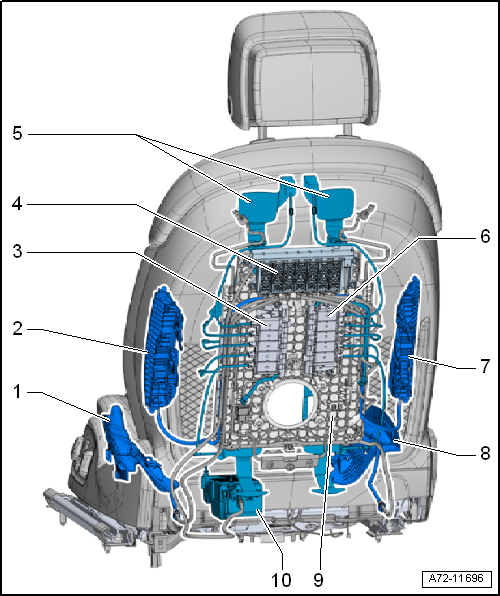

1 - Left Seat Bolster Inflation Adjuster
- Overview. Refer to → Chapter "Overview - Pneumatic System, Seat-/Backrest Bolster Adjuster".
2 - Left Backrest Bolster Inflation Adjuster
- Overview. Refer to → Chapter "Overview - Pneumatic System, Seat-/Backrest Bolster Adjuster".
3 - Valve Block 2 in Driver Seat -N476-
- Front passenger side: Valve Block 2 in Front Passenger Seat -N478-
- For massage mat
- Overview. Refer to → Chapter "Overview - Backrest Cushion Massage Mat, Multi-contour Seat from 09/2012".
4 - Valve Block 1 in Driver Seat -N475-
- Front passenger side: Valve Block 1 in Front Passenger Seat -N477-
- For lumbar support and side wall adjuster
- Overview. Refer to → Chapter "Overview - Valve Block/Module Carrier/Lumbar Support/Fan, Multi-contour Seat from 09/2012".
5 - Massage Mat
- Overview. Refer to → Chapter "Overview - Backrest Cushion Massage Mat, Multi-contour Seat from 09/2012".
6 - Valve Block 3 in Driver Seat -N523-
- Front passenger side: Valve Block 3 in Front Passenger Seat -N524-
- For massage mat
- Overview. Refer to → Chapter "Overview - Backrest Cushion Massage Mat, Multi-contour Seat from 09/2012".
7 - Right Backrest Bolster Inflation Adjuster
- Overview. Refer to → Chapter "Overview - Pneumatic System, Seat-/Backrest Bolster Adjuster".
8 - Right Seat Bolster Inflation Adjuster
- Overview. Refer to → Chapter "Overview - Pneumatic System, Seat-/Backrest Bolster Adjuster".
9 - Module Carrier, Air Cushions for Lumbar Support
- Overview. Refer to → Chapter "Overview - Valve Block/Module Carrier/Lumbar Support/Fan, Multi-contour Seat from 09/2012".
10 - Driver Multi-contour Seat Compressor -V439- with Integrated Driver Multi-contour Seat Control Module -J873-
- Front passenger side: Front Passenger Multi-contour Seat Compressor -V440- with integrated Front Passenger Multi-contour Seat Control Module -J872-
- Overview. Refer to → Chapter "Overview - Compressor, Multi-contour Seat from 09/2012".
