Audi A6 Typ 4G: Securing on Engine and Transmission Holder
Special tools and workshop equipment required
- Engine And Transmission Holder -VW6095-

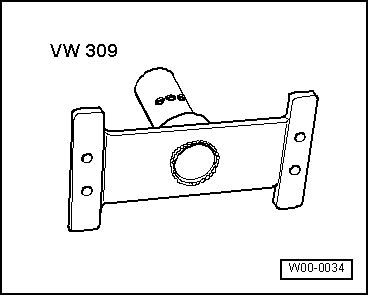

- Holding Plate -VW309A-

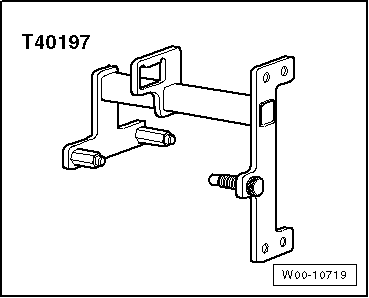

- Hook And Support Tool -T40197-

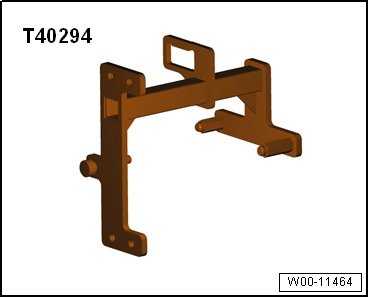

- Hook and Support Tool -T40294-
DANGER!
Do not use the Hook And Support Tool T40197 for the repair (Refer to → Chapter "Sensor Module , with integrated transmitters and sensors -G612-, -G632-, -G676 - and Circuit Board 3 , Removing and Installing") - There is a risk of injury.
Only use the Hook and Support Tool T40294 for this operation.
Procedure

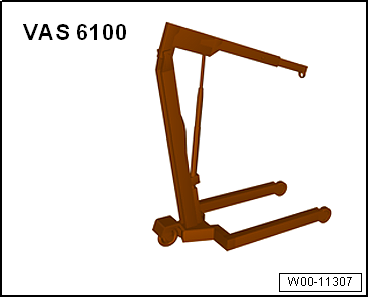

- Hold the transmission with the Shop Crane -VAS6100-. Refer to → Chapter "Transmission, Transporting".

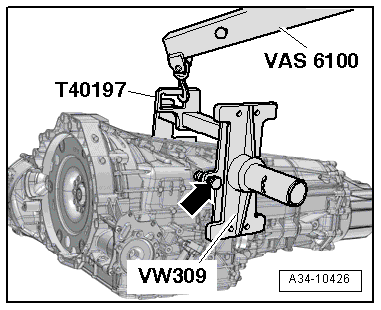

- Attach the Holding Plate -VW309A- to the Hook And Support Tool -T40197-.

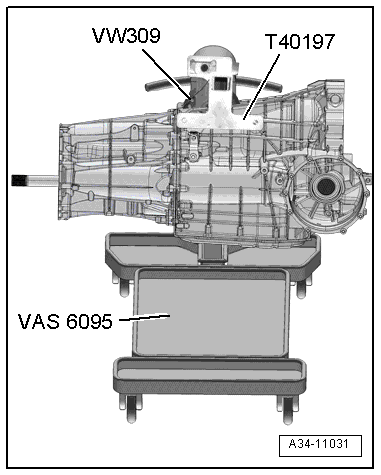

- Place the transmission using the Shop Crane -VAS6100- in the Engine And Transmission Holder -VAS6095-.
Note
The vents for the transmission housing and final drive must be closed before turning a filled transmission with oil pan upward on the engine and transmission holder.
Automatic Transmission Fluid
ATF Drain Plug, Fill Plug and Check Plug Assembly Overview
1 - ATF Drain Plug
- 45 Nm
2 - Seal
- For the ATF drain plug
- Replacing
3 - Transmission Fluid (MTF) fill and Check Plug
- Tightening specification 45 Nm
- Inside the manual transmission, front final drive and transfer case
4 - ATF Fill and Check Plug
- 45 Nm
5 - Transmission Fluid (MTF) Drain Plug
- Drain plug tightening specification 45 Nm
- Inside the manual transmission, front final drive and transfer case
- Depending on the date of manufacture, Transmission Fluid Temperature Sensor 2 -G754- may also serve as the transmission fluid drain plug; tightening specification for Removing and installing. Refer to → Chapter "Transmission Fluid Temperature Sensor 2 -G754-, Removing and Installing".
ATF, Draining and Filling
ATF Level, Checking and Correcting: The ATF level can be checked and corrected only if the transmission is installed. Refer to → S tronic Transmission; Rep. Gr.34; Automatic Transmission Fluid; ATF Level, Checking
Special tools and workshop equipment required
- Used Oil Collection and Extraction Unit -SMN372500-
- Protective eyewear
ATF, Draining
Transmission Installed:
- The engine is off.
- Move vehicle onto a four-pillar workshop hoist or over a work pit so that it is absolutely horizontal.
- The selector level is in "P".
- The parking brake button should be activated to set the electromechanical parking brake.
- Remove the rear noise insulation -2-. Refer to → Body Exterior; Rep. Gr.66; Noise Insulation; Noise Insulation, Removing and Installing.
Caution
Danger of Causing Damage to the Transmission.
Engine must not be started if only a small amount or no ATF is in the transmission after repair work or after significant ATF loss.
Transmission Removed.
- The transmission is secured to the engine/transmission holder. Refer to → Chapter "Securing on Engine and Transmission Holder".
Transmission, Removed or Installed:
- Place the Used Oil Collection and Extraction Unit -SMN372500- under the transmission.
WARNING
Danger of eye injury.
Wear protective eyewear.
- Remove the ATF drain plug -arrow- and let the ATF drain out.
Note
- Follow the disposal requirements.
- Replace the ATF drain plug seal.
- Tighten the ATF drain plug.
On Transmissions with an ATF Filter -2-:
Caution
Danger of causing damage to the transmission.
Always replace the ATF filter -2- every time the ATF is changed.
- Replace the ATF filter. Refer to → Chapter "ATF Filter, Removing and Installing".
Continuation for All Transmissions:
Fill the Transmission with ATF.
Caution
Danger of Causing Damage to the Transmission.
- Only use replacement part ATF for the DSG transmission 0B5.
- Allocation. Refer to the Parts Catalog.
- Using other types of ATF can result in the malfunctions or transmission failure.
- The ATF filler tool must be clean and the ATF must not be mixed with any other oils.
- Fill with ATF. Refer to → S tronic Transmission; Rep. Gr.34; Automatic Transmission Fluid; ATF, Draining and Filling
Special Tools
Special tools and workshop equipment required
- Hook And Support Tool -T40197-
- Hook and Support Tool -T40294-
- Used Oil Collection and Extraction Unit -SMN372500-
- Engine And Transmission Holder -VW6095-
- Shop Crane -VAS6100-
- Holding Plate -VW309A-
- Protective eyewear
- Seal Installer - Clutch Housing -T40260-
- Counterhold - Side Shaft -T40217-
- Sensor Module Tool -T40228-
- Sealant. Refer to the Parts Catalog.
